Bar Grating
Bar grating is the most popular bar grating due to its strength, low cost, and ease of installation.
It is used in a wide variety of applications including industrial plants, commercial buildings, walkways, platforms, safety barriers, drainage covers and ventilation grates. The openings are cost saving by maximizing the circulation of air, light, heat, water and sound, while promoting cleanliness.

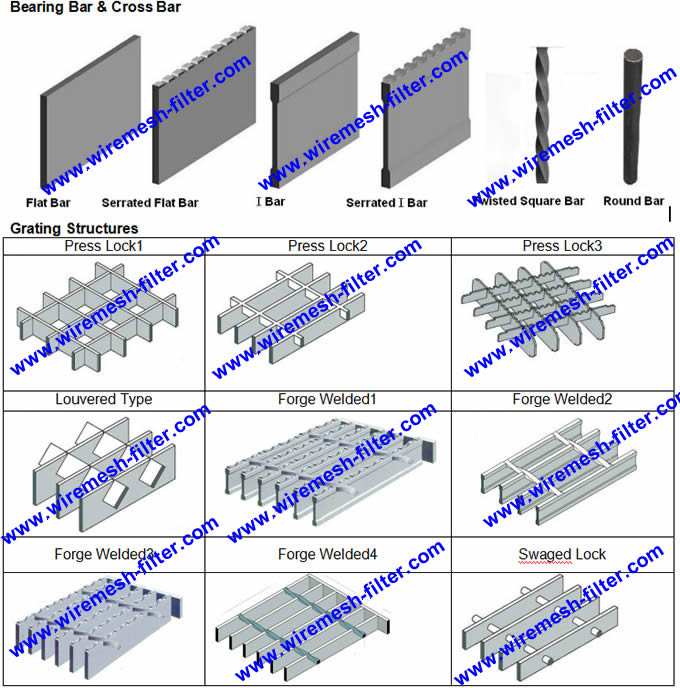

Bar Grating consists of a series of bearing bars welded with the cross bars at the intersection to form a load-bearing panel. Panels are manufactured by welding, locked by swaging, or press-locked processes.
Bar Grating is available in a wide selection of panel sizes; bar sizes and spacings; bar shapes; and material types.

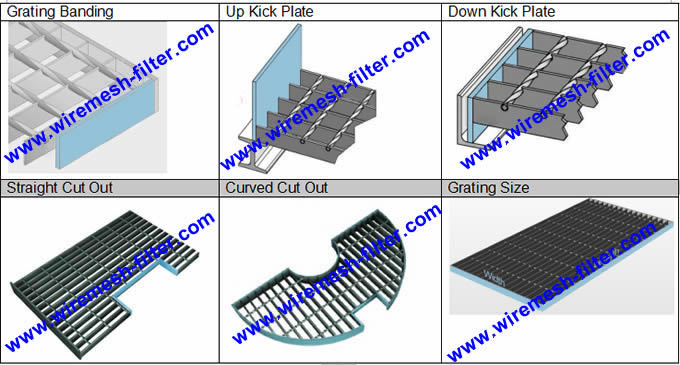

Bar Grating Terminology.
Item No. |
Bearing Bar Pitch |
Cross Bar Pitch |
Specification of bearing bar load(width×thickness) |
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
1 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
2 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
3 |
60 |
50 |
|
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Item No. |
Bearing Bar
Pitch |
Cross Bar Pitch |
Specification of bearing bar load(width×thickness) |
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
1 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
2 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
3 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
