Handrail

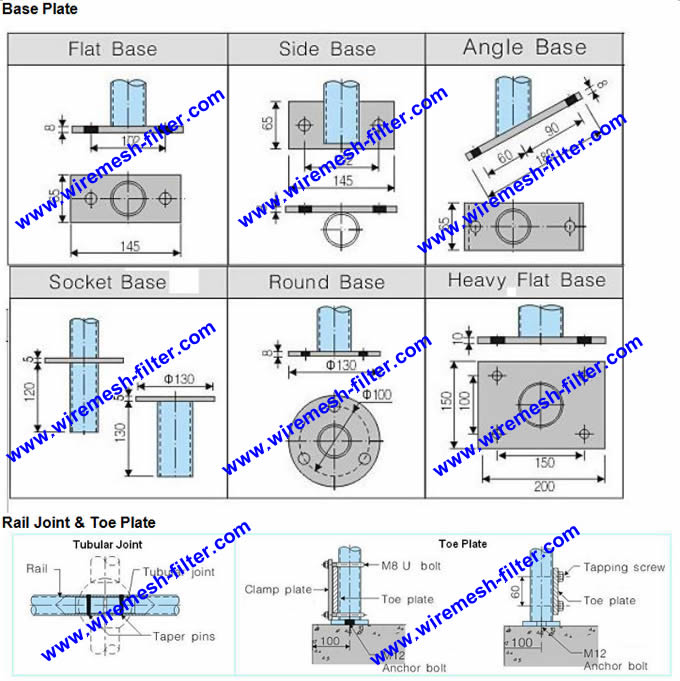

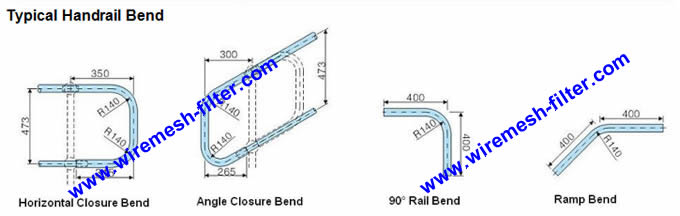

The standard handrail consists of a hand rail, a knee rail, and a toe plate. Fabricated handrail system is delivered complete with all necessary bends and joints, and is clearly marked for a quick and simple installation.

The modern industrial handrail system is absolutely essential to maintain adequate levels of safety within the workplace, which are widely used to guard platforms, stairways, gangways, towers, danger zones and all other areas where safety is of prime concern.

Stanchions types

The data in the brackets are for stainless steel, others are for carbon steel.

Model

Ball No.

Rail Height
(mm)

Ball Dia
(mm)

Shank Dia
(mm)

Handrail Dia
(mm)

Knee Rail Dia
(mm)

TDE1

1

Made to Order

66(70)

42.3(38.1)

33.5(38.1)

-

TDS1

1

Made to Order

76(85)

48.0(51.0)

42.3(51.0)

-

TDE2

2

1017

66(70)

42.3(38.1)

33.5(38.1)

26.8(32.0)

TDS2

2

1017

76(85)

48.0(51.0)

42.3(51.0)

33.5(38.1)

TDE3

3

1200

66(70)

42.3(38.1)

33.5(38.1)

26.8(32.0)

TDS3

3

1200

76(85)

48.0(51.0)

42.3(51.0)

33.5(38.1)

Applications
