B Shale Shaker

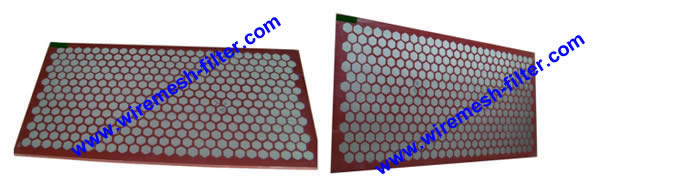

Cobra Series/ATL-1000/LCM-3D Shale Shaker Screen
Steel frame supported shale shaker screens are built to withstand the harsh environments encountered while drilling.
The triple-layer, oblong mesh configurations remove even the toughest solids from the drilling fluid, enabling greater control of drilling fluids and enhancing overall efficiency of the drilling operation.
VNM shale shaker screen is also available for this series screen.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
Cobra Series/ATL-1000/LCM-3D |
Steel Frame |
5.43 sq.ft. |

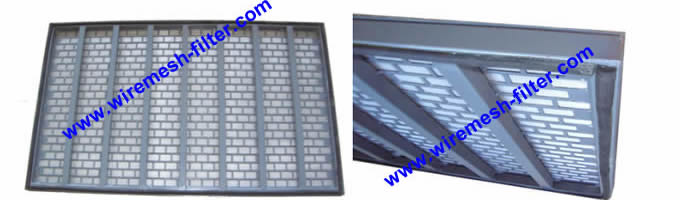

National D285P/380 Shale Shaker Screen
Frame supported metal back screen approximately 46" from side to side and 28" in the direction of flow.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
National D285P/380 |
Steel Frame |
5.8 sq.ft. |

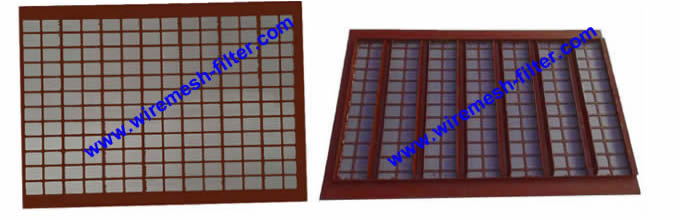

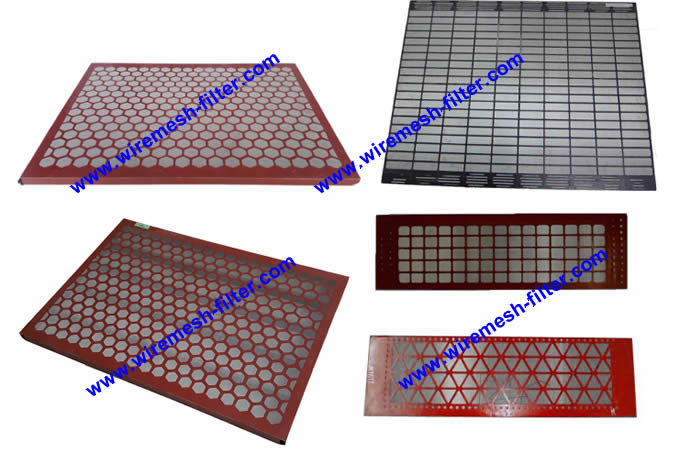

VSM300 Shale Shaker Screen
There are three screen decks on the VSM300 shale shaker, scalping deck, fine screen deck, dewatering deck. The screens for the 3 decks are scalping screen, primary screen, secondary screen or dryer screen. And the primary screen is the fine screen to separate the main harmful solid phase from the drilling fluids, it is also available in composite screen panels.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
VSM300 Scalping |
Steel Frame |
4.3 sq.ft. |
VSM300 Primary |
Steel Frame |
3.6 sq.ft. |
VSM300 Primary |
Composite |
4.6 sq.ft. |
VSM300 Dewatering |
Steel Frame |
1.1 sq.ft |

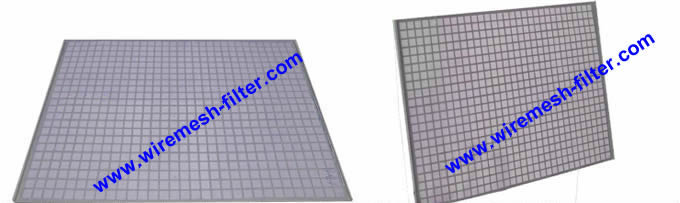

LCM-2D Shale Shaker Screen
Hook strip replacement screens can be fit the LCM-2D shakers. The replacement screens utilize ultra fine screen cloth to maximize capacity while maintaining cut point integrity and minimizing near-size particle binding. Precisely perforated metal backing plate design features 1’’ perforated square apertures to greatly increase screen life and facilitate field repair for extended panel life.
The feed end screen is set at 0°; the other screens are inclined at +5°. This design reduces the depth of the liquid pool to improve solids conveyance and reduce regrinding of solids while maintaining good flow properties.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
LCM-2D |
Hookstrip |
8.3 sq.ft. |
VSM100 Shale Shaker Screen
