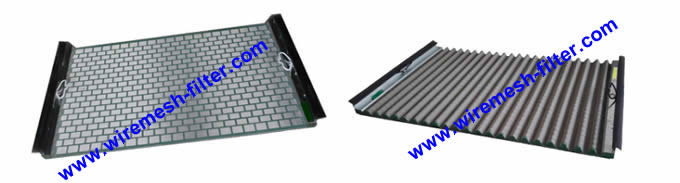

Model 300 Shale Shaker Screen
The model 300 series shale shaker utilizes 36 x 30 screens which are available in FLAT and PINNACLE type.
Pretensioned wire cloth is tightly bonded on the supporting metal back, increase the screen conductance and ensure a longer screen life. Metal hookstrip makes it easier and quicker to change the screen, save working time.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
Fluid300 |
Flat |
4.26 sq.ft. |
Fluid300 |
Pinnacle |
6.24 sq.ft. |
Shaker Model Screen Type API RP 13C Non Blanked Screen Area
Fluid300 Flat 4.26 sq.ft.
Fluid300 Pinnacle 6.24 sq.ft.

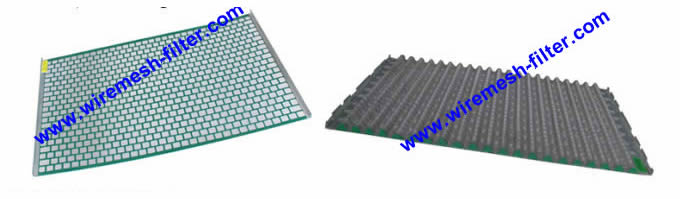

Mode 500 Shale Shaker Screen
Model 500 Series screens are available in FLAT and PINNACLE panels, can be fitted on all 500 series shale shaker. Innovative perforated metal panel can completely match the single side tensioning system, which reduces the screen replacement time.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
Fluid500 |
Flat |
4.15 sq.ft. |
Fluid500 |
Pinnacle |
8.24 sq.ft. |

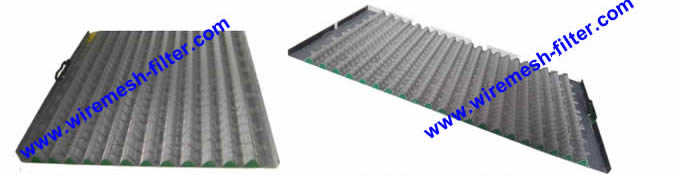

Mode DP600 & HP600 Shale Shaker Screen
DP600 & HP600 screens are available in PINNACLE panels, which are designed to suit the screen compression system, extend the screen life, maximize the screen conductance, ensure a better solid control performance.
Shaker Model |
Screen Type |
API RP 13C Non Blanked Screen Area |
DP600 |
Pinnacle |
4.20 sq.ft. |
HP600 |
Pinnacle |
5.80 sq.ft. |
