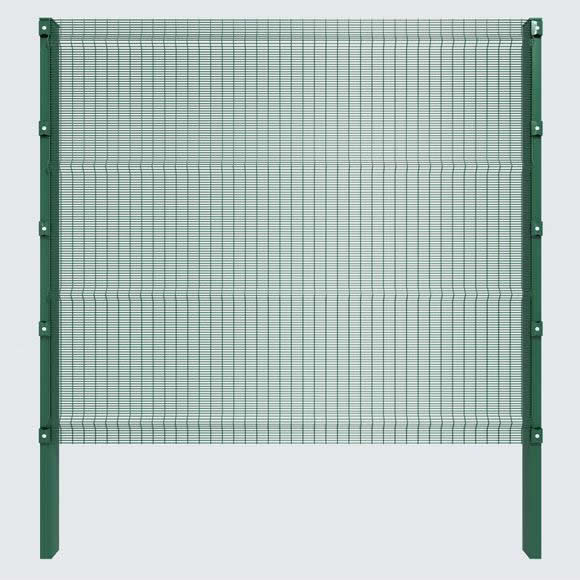

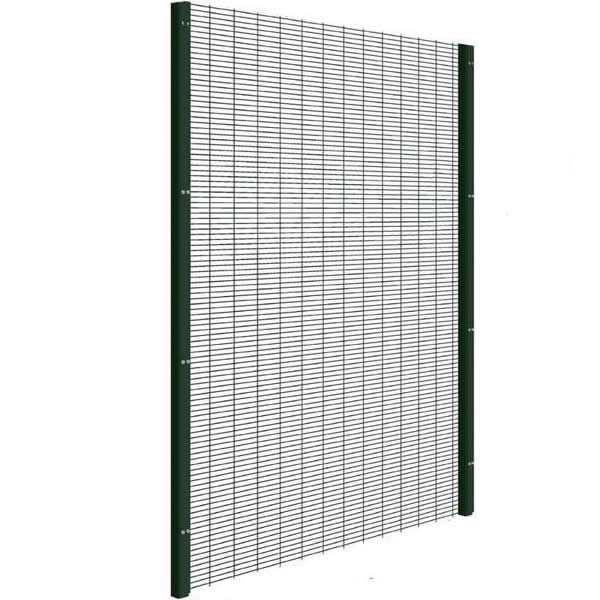

358 security mesh panel can be installed to create a very secure fence in a range of standard heights from 2m up to 6m high. 358 mesh fence is manufactured from galvanized material and PVC coated.
The "358" mesh is made from 75mm x 12.5mm x 4mm welded mesh fabric that has very small apertures making it extremely difficult to use cutting tools or for would-be intruders to climb or pass objects through the fence which makes it very suitable for external storage areas for retail outlets.
358 security mesh panel can be installed to create a very secure fence in a range of standard heights from 2m up to 6m high.
For added security, the rectangular hollow section steel posts can be extended further to take rows or barbed wire, or razor wire in coils to increase security further.

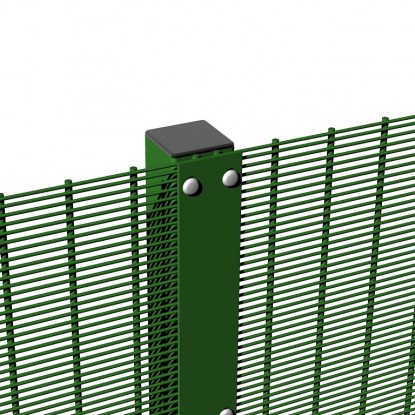

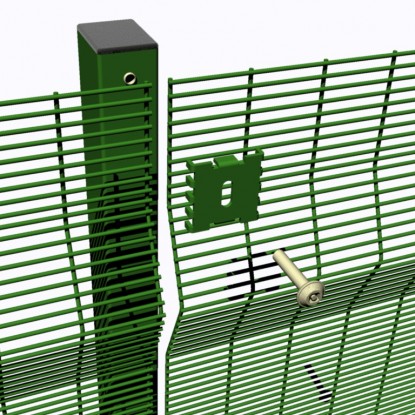

358 mesh fence systems are supplied with full height clamp bars and tamper-proof fixings as standard.
358 mesh fence is manufactured from galvanized material and PVC coated.
|Fence Height |
|Panel Size |
(H × W)
|Fence Post |
(Height × Size × Thick )
|Clamp Bar |
(Height × Width × Thick )
|Clamp No |
|2.0||2000 x 2515||2700mm x 60x60x2.5mm||2007mm x 60mm x5.00mm||7 or 14|
|2.4||2400 x 2515||3100mm x 60x60x2.5mm||2400mm x 60mm x5.00mm||9 or 18|
|3.0||2997 x2515||3800mm x 80x80x2.5mm||2997mm x 80mm x6.00mm||11 or 22|
|3.3||3302 x 2515||4200mm x 80x80x2.5mm||3302mm x 80mm x6.00mm||12 or 24|
|3.6||3607 x 2515||4500mm x 100x60x3.0mm||3607mm x 100mmx7.00mm||13 or 26|
|3.6||3607 x 2515||4500mm x 100x100x3.0mm||3607mm x 100mmx7.00mm||13 or 26|
|4.2||4204 x 2515||5200mm x 100x100x4.0mm||4204mm x 100mm x 8.00mm||15 or 30|
|4.5||4496 x 2515||5500mm x 100x100x5.0mm||4496mm x 100mm x8.00mm||16 or 32|
|5.2||5207 x 2515||6200mm x120x120x5.0mm||5207mm x 100mmx8.00mm||18 or 36|
