Fixed Knot Fence

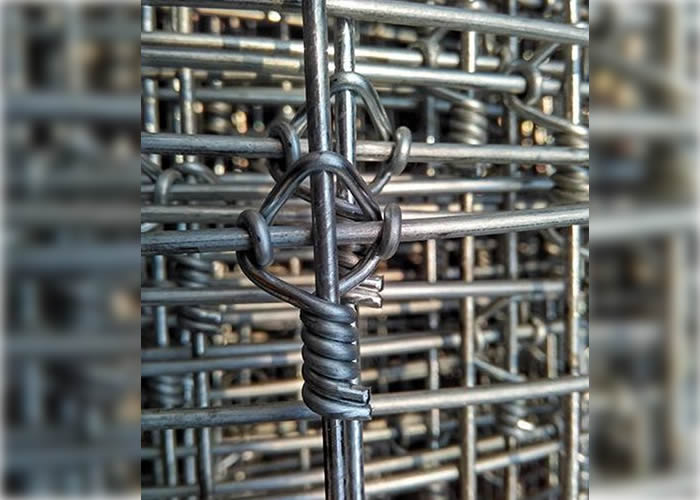

Fixed knot fence is formed with continuous vertical and horizontal wires, wrapped in a fixed knot with a third wire. It provides the strength and rigidity as well as the safety necessary for the animal breeding.
Fixed knot fence is formed with continuous vertical and horizontal wires, wrapped in a fixed knot with a third wire. It provides the strength and rigidity as well as the safety necessary for the animal breeding.
Fixed knot fence is a style in contrast with the hinged knot fence while the former has stronger wire fabrics and can be installed quickly with fewer fence posts. This means that fixed knots brings reduced cost and less maintenance compared with other wire structures. Fixed knot fence are mainly used in the farm and pastures for animal fencing including deer fences and horse fences. In regard to the surface treatment, fixed knot fence is available in heavy coated galvanized for a long service life. This type of field fence is also available with a green plastic coating finish to harmonize with the surroundings.

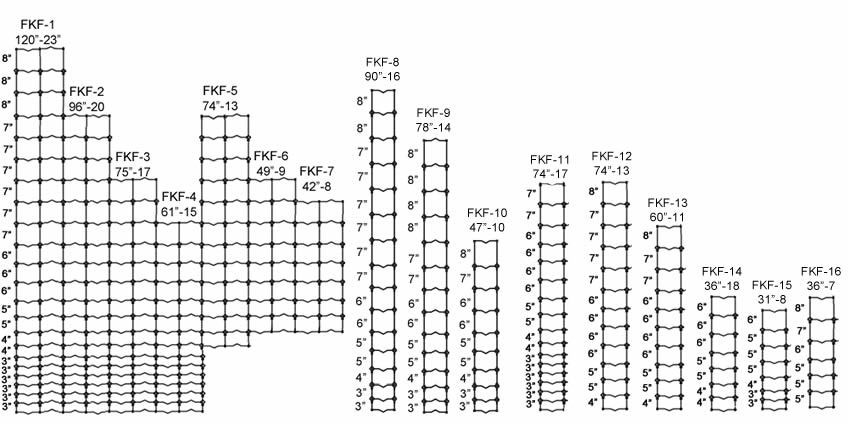

| Fixed knot fence | |||||
| Item | Horizontal wire number | Inside wire gauge | Top & bottom wire gauge | Stay spacing | Fence height |
| FKF-1 | 23 | 12.5 | 10.5 | 3", 6" or 12" | 120" |
| FKF-2 | 20 | 12.5 | 10.5 | 3", 6" or 12" | 96" |
| FKF-3 | 17 | 12.5 | 10.5 | 3", 6" or 12" | 75" |
| FKF-4 | 15 | 12.5 | 10.5 | 3", 6" or 12" | 61" |
| FKF-5 | 13 | 12.5 | 10.5 | 3", 6" or 12" | 74" |
| FKF-6 | 13 | 12.5 | 12.5 | 3", 6" or 12" | 48" |
| FKF-7 | 9 | 12.5 | 12.5 | 3", 6" or 12" | 49" |
| FKF-8 | 16 | 12.5 | 12.5 | 3", 6" or 12" | 90" |
| FKF-9 | 14 | 12.5 | 12.5 | 3", 6" or 12" | 78" |
| FKF-10 | 10 | 12.5 | 12.5 | 3", 6" or 12" | 47" |
| FKF-11 | 17 | 12.5 | 12.5 | 3", 6" or 12" | 74" |
| FKF-12 | 13 | 12.5 | 12.5 | 3", 6" or 12" | 74" |
| FKF-13 | 11 | 12.5 | 12.5 | 3", 6" or 12" | 60" |
| FKF-14 | 8 | 12.5 | 12.5 | 3", 6" or 12" | 36" |
| FKF-15 | 8 | 12.5 | 12.5 | 3", 6" or 12" | 31" |
| FKF-16 | 7 | 12.5 | 12.5 | 3", 6" or 12" | 36" |
