Chain Link Fence
Chain link fence also referred to stadium fence, used chain link fence, wire mesh sport fence, basketball fence etc. It is a type of woven fence usually made from galvanized or pvc coated steel wire and have a diamond shaped pattern.
Chain link fence also referred to stadium fence, used chain link fence, wire mesh sport fence, basketball fence etc. It is a type of woven fence usually made from galvanized or pvc coated steel wire and have a diamond shaped pattern. The popular of chain link fence is due to its relatively low coat and ease of installation. A further advantage is due to the open weave. Chain link fence is transparent and do not obscure sunlight from either side of the fence. One can make a chain link fence semi-opaque by inserting slats into the mesh.

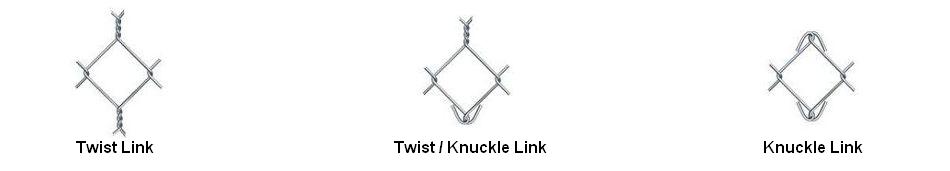

Selvedge Type

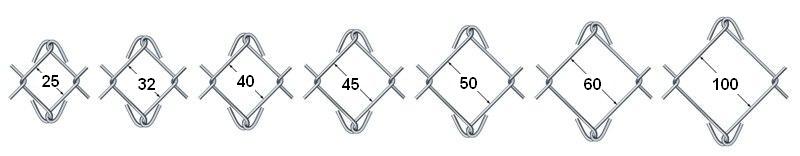

Mesh Opening
| Wire Dia. | Mesh | Length | Height | Post Height | Suitable Post |
| 1.8mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm 4.5mm | 30*30mm 40*40mm 50*50mm 60*60mm 75*75mm | 10m 15m 20m 25m 30m or longer | 1000mm 1200mm 1500mm 1800mm 2000mm 2500mm 3000mm 4000mm 5000mm | 1500mm 1700mm 2000mm 2300mm 2500mm 3000mm 4000mm 5000mm 6000mm | Round post/Square post (with the frame to install with the post) |
