Others Brands

Shale Shaker Screen

Others Brands

Each screen frame is manufactured using high yield structural tubing. Dimensional tolerances are ensured with the use of machined welding fixtures. Each frame is inspected and checked for flatness before the screen manufacturing process begins.


Fluid System

Frame Construction

Each screen frame is manufactured using high yield structural tubing. Dimensional tolerances are ensured with the use of machined welding fixtures. Each frame is inspected and checked for flatness before the screen manufacturing process begins.

Screen Panel Manufacturing

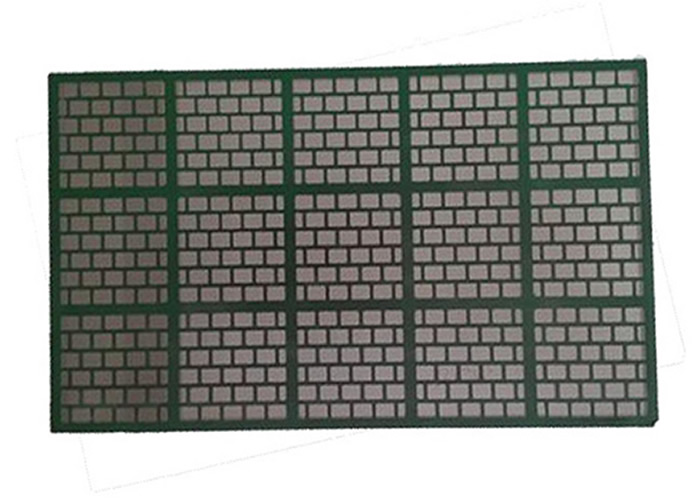

All screens are manufactured with high quality stainless steel wire mesh. Each roll of wire cloth is checked for conformance to tolerances and visually inspected for weaving flaws before manufacturing begins. State of the art manufacturing equipment and a stringent quality assurance program ensures that only the highest quality screens are shipped. All screens comply with API RP13C standards FSI 20L, 50, 500, 5000 series shale shaker are adopted with the 29 x 42 shale shaker screen, only the black thunder shale shaker is adopted 36 x 42 screen.

ESS-448AG/ESS48AG,ESS48STD

The perforated punch plate acts as the support structure for the wire cloth and is designed with a hexagonal pattern. This increases the non-blanketed surface area across the screening surface for fluid to pass thru. This pattern decreases the chances of screen blinding during operation and maximizes the amount of fluid passing thru the screen

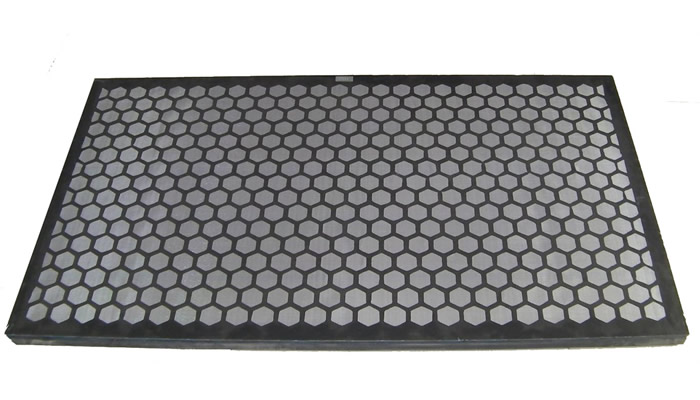

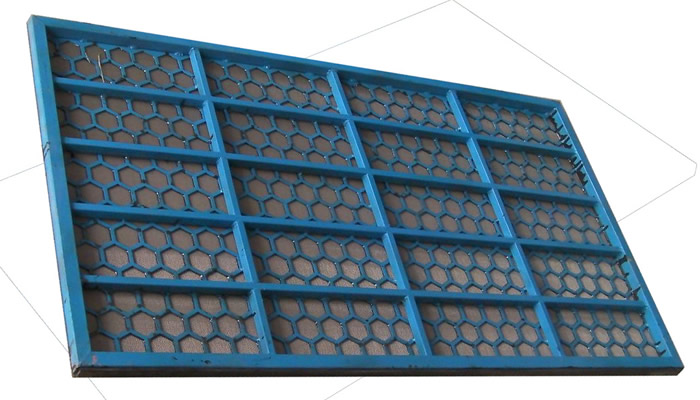

Elgin ESS-448AG shale shaker is equipped with KPT26 shaker screens, while the ESS48AG and ESS48STD are equipped with KPT28 shaker screens.

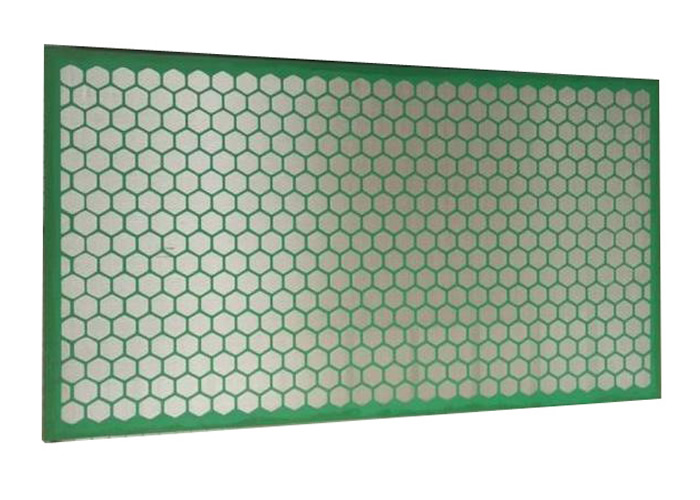

Scomi Prima Shaker All series

Scomi shaker screens are manufactured with a triple layer sandwich construction using an extra fine square mesh cloth that has a simple perforation pattern bonded to a perforated panel. This construction ensures longer screen life without compromising separation ability and conductance.

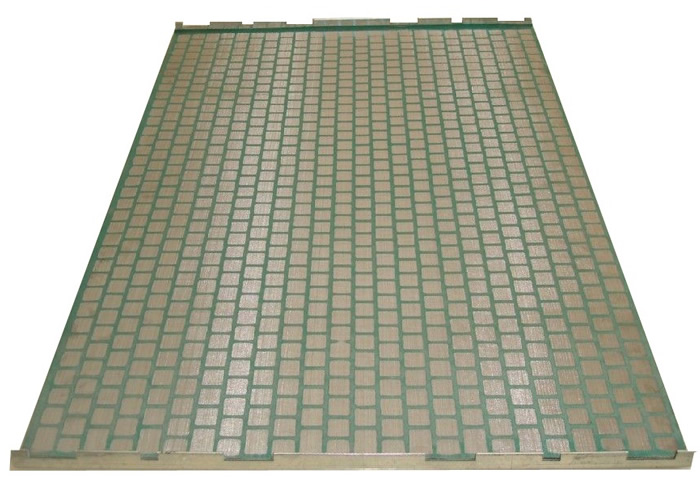

Triton and DFE Shale Shaker Screen

Triton and DFE SCR-01shale shaker are equipped with hookstrip shale shaker screen.

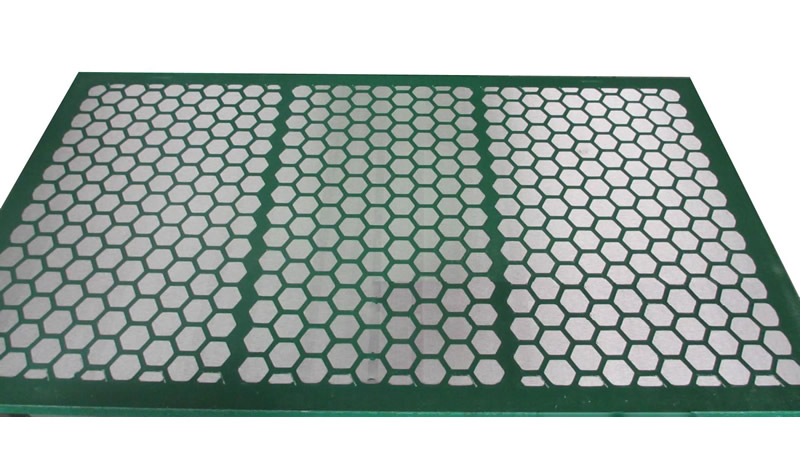

Vortex Shale Shaker Screen
